Having what appears to be a slow/wonky OBD logging/overlay display issue. Test setup below:

v20.0.6 Grand Prix
Samsung Galaxy S7 (Verizon) running Android 6.0.1, stock OS, no root/custom ROM etc.
OBDLink MX
Skypro XGPS160
Test vehicle: 2013 Toyota Tacoma

With this setup and everything connected I'm getting around a 9-10hz refresh rate or around a total 35-40 PID/rate (if I remember correctly). So everything looks fine there. Just when I actually record a session, the vehicle speed, RPM, throttle, boost etc., gauges are all over the place. They will sometimes jump all over the place and/or sometimes just lag behind horribly. I had this issue with v19 as well on a different phone. But now I have v20 on a new phone and used it on multiple vehicles.... so I figured it was worth bringing up again on here (and pretty sure it's just not an issue specific to my vehicle or phone anymore). The XGPS160 was used and connected at 10Hz for all tests as well.

Here's a video of what I'm talking about. Just a simple test on the street where I go WOT, trans downshifts and I briefly accelerate. You can see RPM and speed jumping around strangely.

https://www.youtube.com/watch?v=U-tS03aK9O8

I also noticed another issue... when recording using the video "preview" mode, there is significant lag in the OBD data. I also noticed on the phone as this was recording it was extremely slow and choppy as well. Probably not a big deal as normally you wouldn't be recording laps like this, but figured I would bring it up as well:

https://www.youtube.com/watch?v=VjMrjF48NwI

I've had this same issue since day 1 which has been the big reason I haven't been using it primarily. Hoping to get this ironed out finally.
User avatar
Harry
Site Admin
Site Admin
Posts: 9987
Joined: Sun Sep 12, 2010 10:32 am
Location: Siegum, Germany
Contact:

Re: OBD logging/display issues in Android

Post by Harry »

Do you get smooth readings while in Engine View and driving? Overlays are always based on peristent and interpolated OBD data - so it may differ from what LapTimer received initially. There is a known problem with certain GPS / OBD update rate combinations and interpolation - that's the reason I ask.

The video live view may combine some overload situations into the rate discussion, which is the reason I ask for the Engine View and not Video View. My Nexus 6 eg is not able to record a 4K video while displaying it and running all other LapTimer stuff in parallel. It is getting all choppy.

Can't watch the videos currently - low GPRS bandwidth here :-(

- Harry
Image Image Image Image
aaronc7
20 or more Posts ★★★
20 or more Posts ★★★
Posts: 30
Joined: Sun Nov 08, 2015 3:09 am

Re: OBD logging/display issues in Android

Post by aaronc7 »

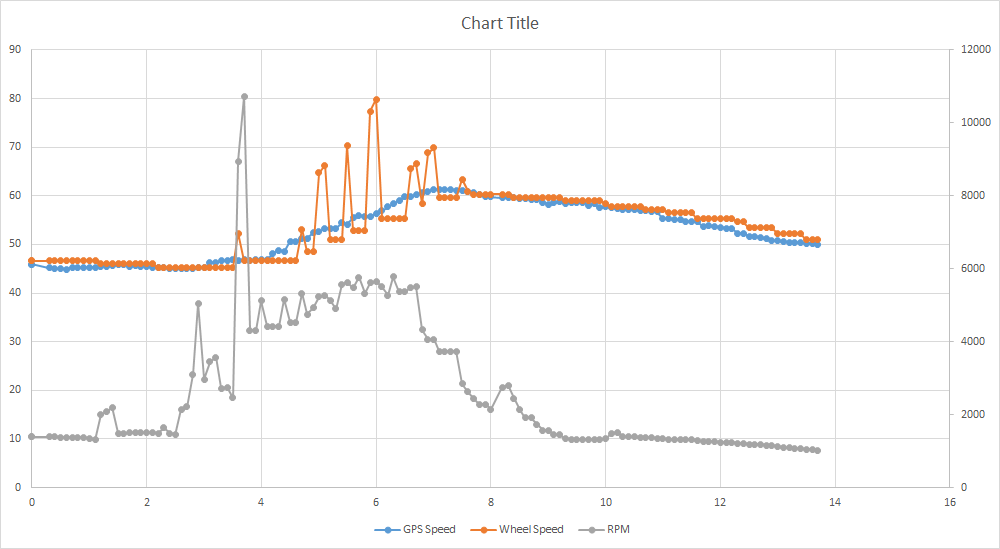

I will check out the Engine View only while driving-- it's a little harder to do while actively driving but I'll give it a shot. If I had to take a guess here it seems like an interpolation issue, there just seems to be outlier values that throw everything off. Attached is the .csv file and a chart with GPS speed, wheel speed and RPM plotted out vs time. The OBD data only goes crazy when there is a larger rate of change.
Attachments
HLT log 1.png
HLT log 1.png (35.64 KiB) Viewed 2732 times
LapTimerGPSRecDB.csv
(23.16 KiB) Downloaded 38 times
aaronc7
20 or more Posts ★★★
20 or more Posts ★★★
Posts: 30
Joined: Sun Nov 08, 2015 3:09 am

Re: OBD logging/display issues in Android

Post by aaronc7 »

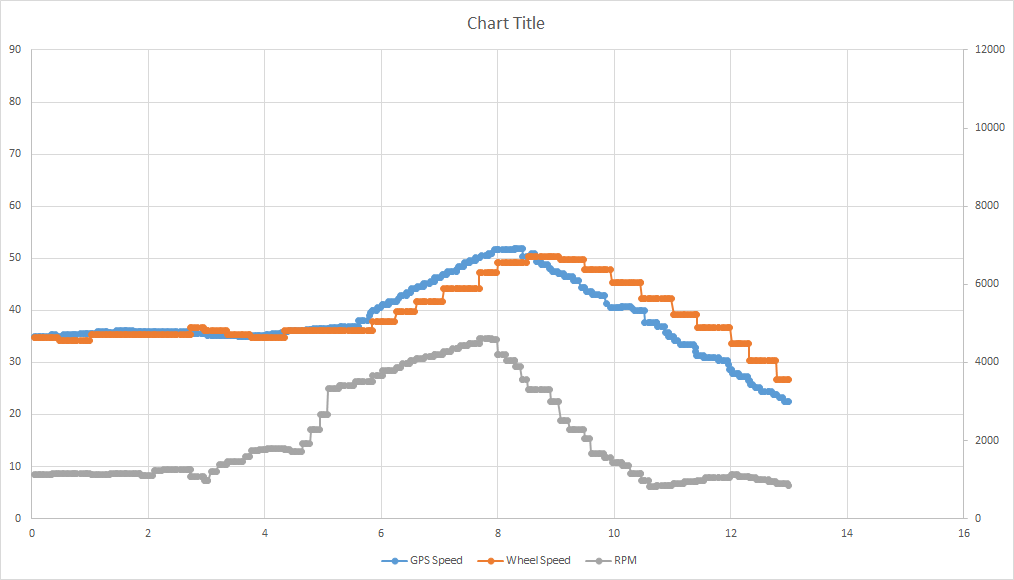

Not trying to make this a HLT vs other app debate, but I also wanted to throw out some data I got with another app doing the same test. If nothing else other than to show that I don't believe there is a hardware or some other strange issue going on with my setup.
